3-4T PUMP HOIST

Standard Features

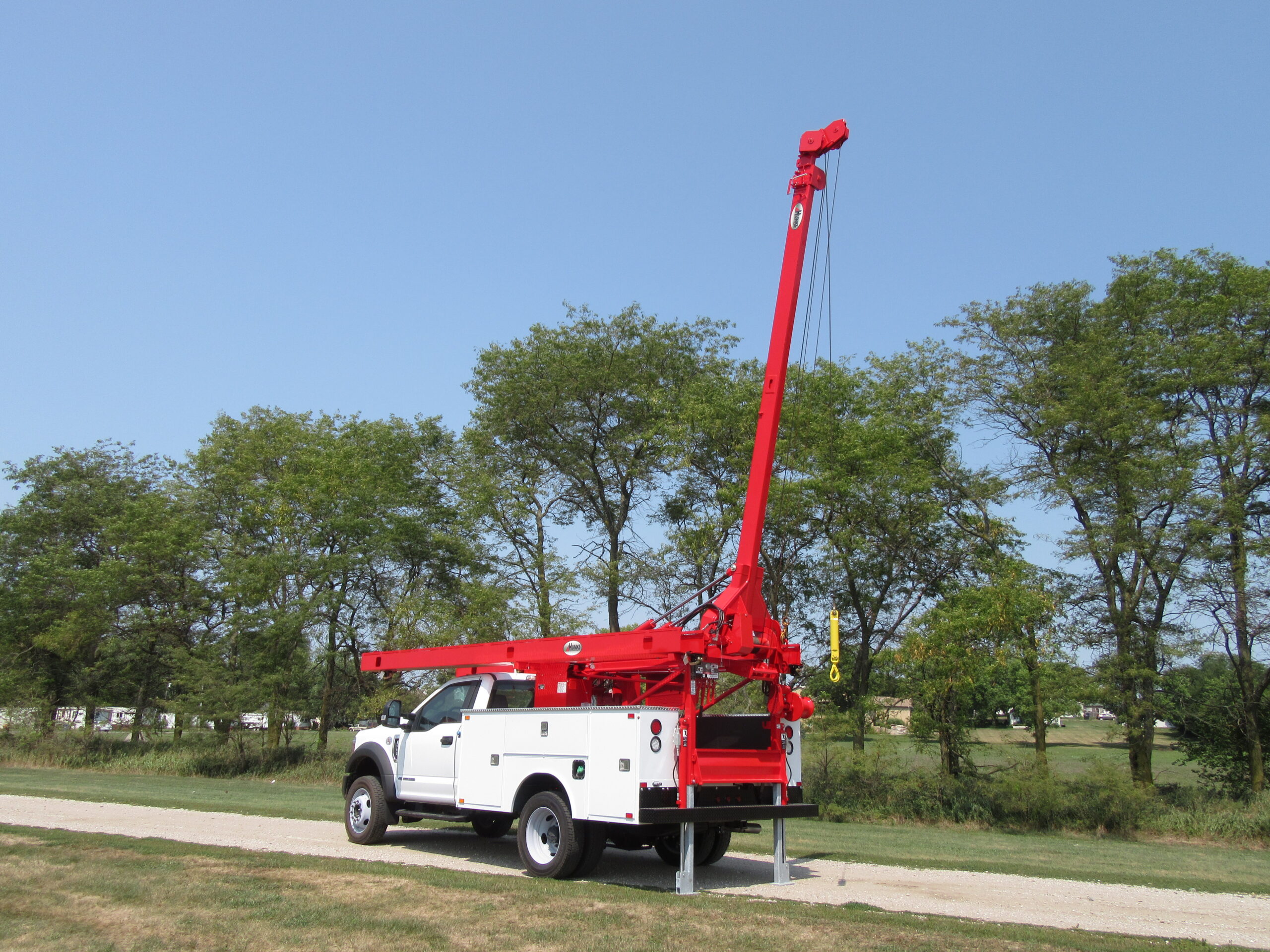

  • Mast: 36 ft. high telescoping mast with 10 ft. maximum layback
  • Capacity: 2,000 lbs. single line, 4,000 lbs. with 2-part line
  • Mainline speed: 220 feet per minute
  • Mainline cable: 3/8″ x 125′ with open wedge spelter

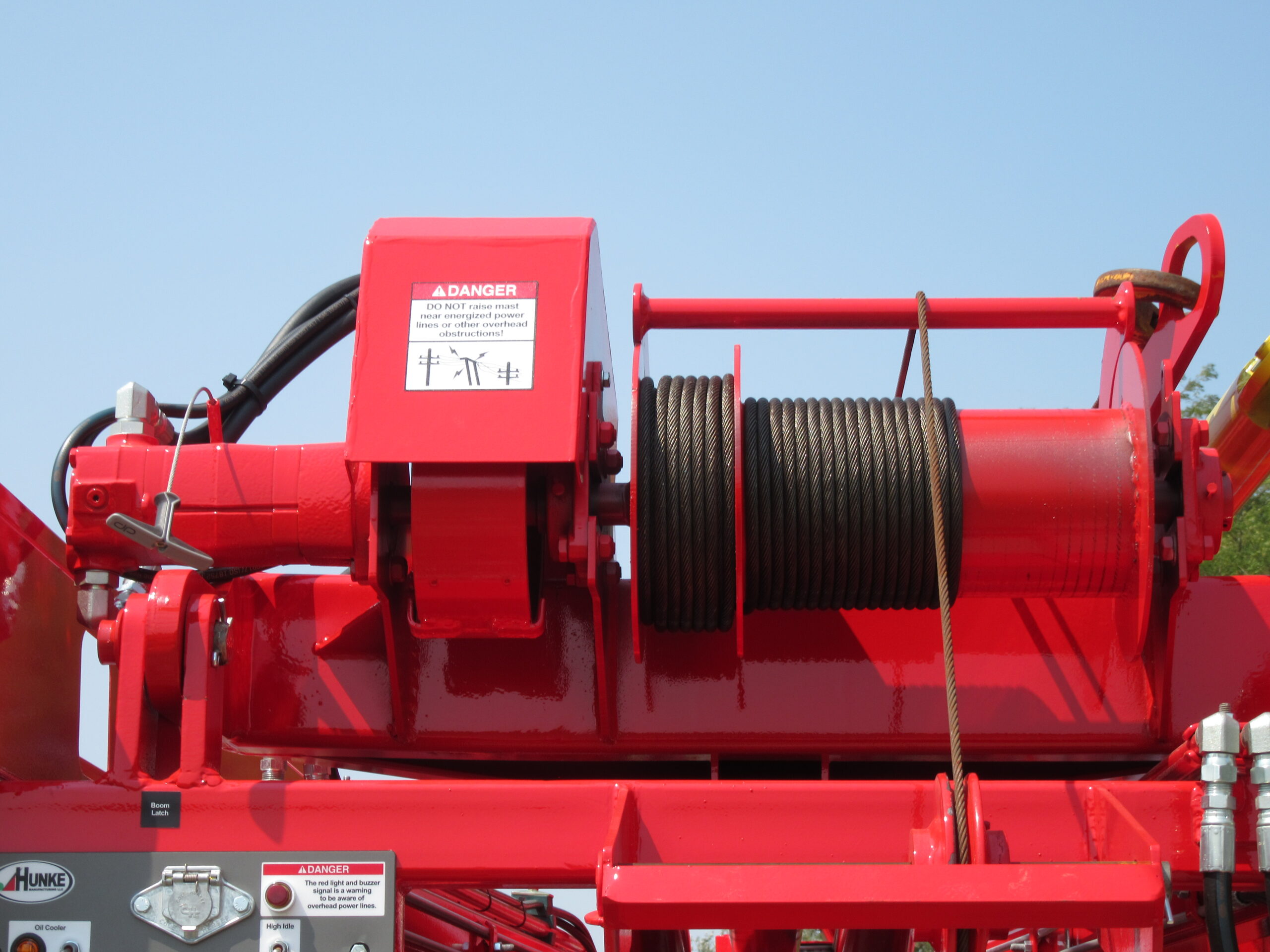

  • The mainline spool is directly assembled to a hydraulic motor.  Braking is accomplished with a Hunke automatic fail safe brake.
  • Line Block: Block for reeving a 2-part line
  • Hook: 3 ton safety hook

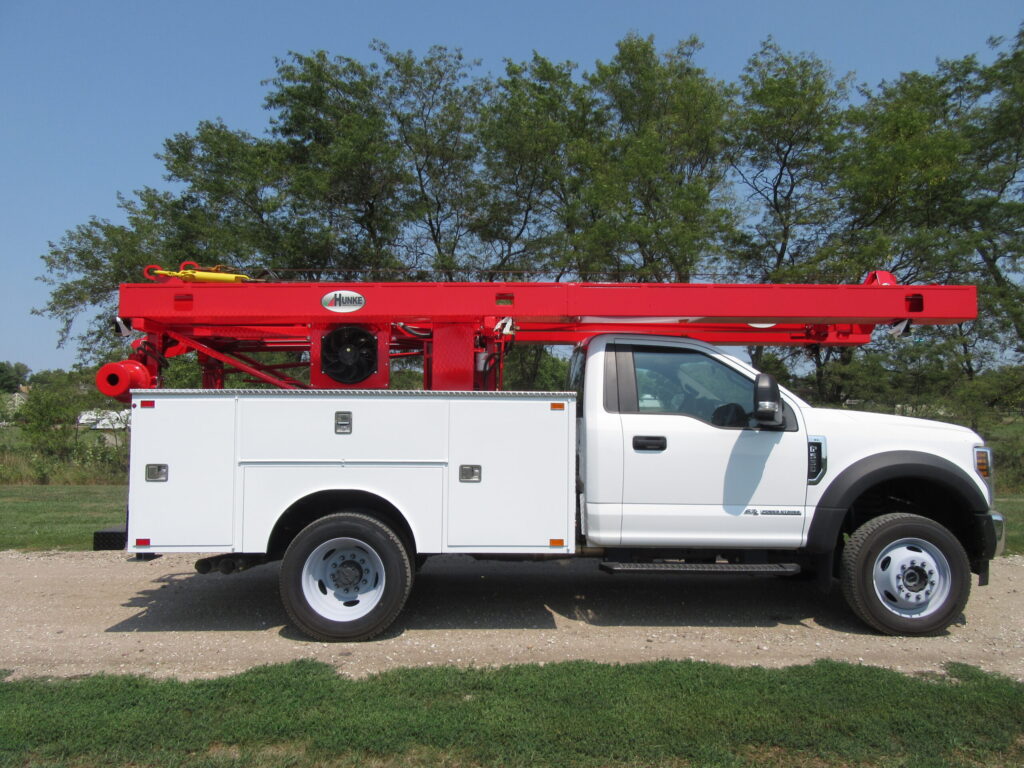

  • The pump hoist may be mounted on a deck or in a 48″ x 9′ utility body
  • Hydraulic by-pass valves are incorporated to protect from overloading

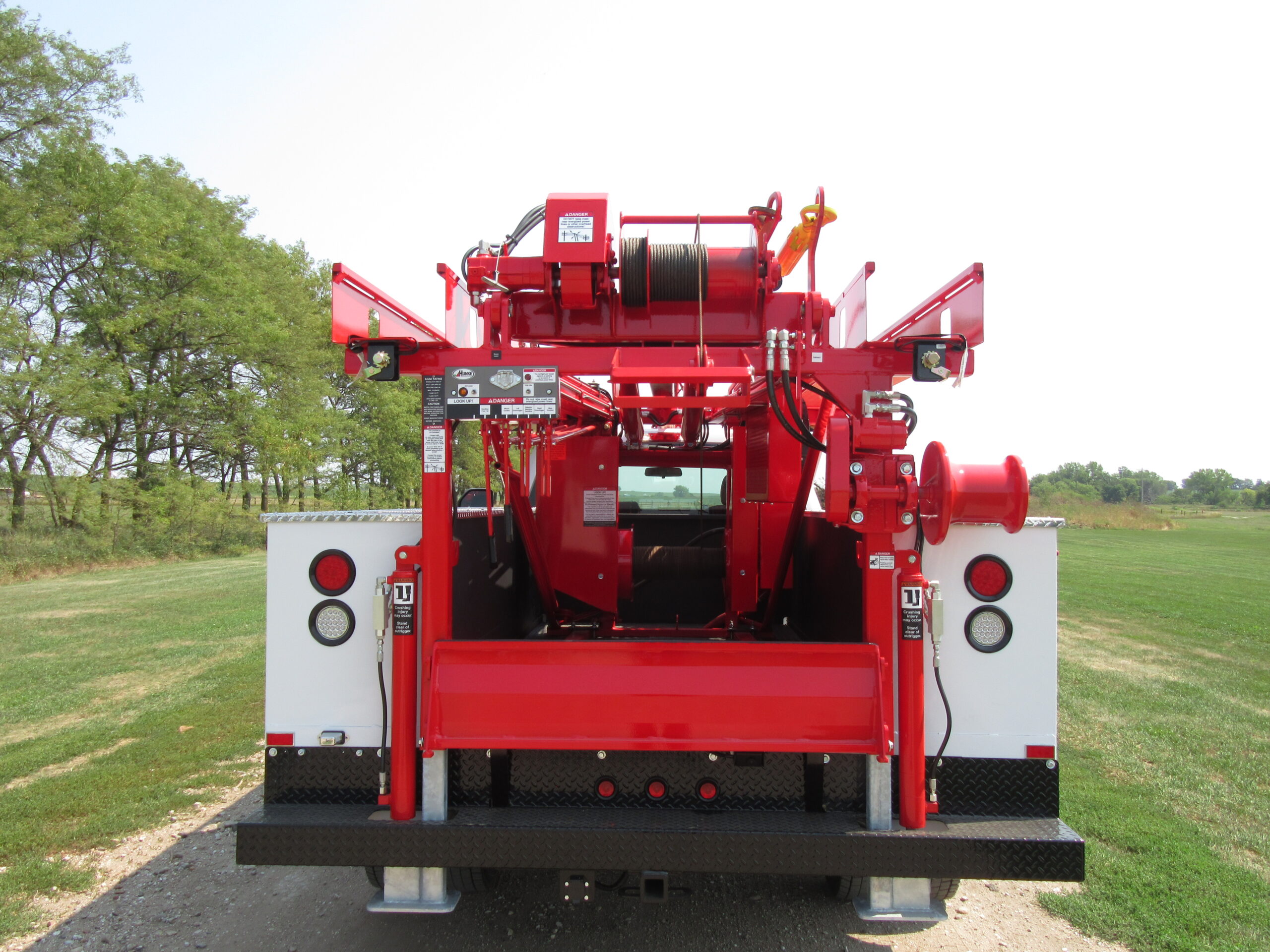

  • Rear hydraulic outriggers with holding valves
  • Holding valve on mast cylinders
  • Wireless remote
  • Gray or white paint

Description

The 4,000 lb. capacity 3-4T is the most economical all-around pump hoist. It’s low cost and simple construction makes it one of the best small machines available on the market today. Fast and easy setup by means of a self supporting mast with two 3-1/2″ bore hydraulic cylinders. A guy cable is not needed in most situations. Designed to allow for easy access to hard-to-get-to pumps and windmills. Weight is approximately 2,300 lbs.

The open frame design allows for full use of the deck area.

Operating controls are conveniently located at the left rear corner of the rig and are accessible from ground level.

The optional sandline winch has 1,000 lb. bare spool lifting capacity with a line speed of 325 ft. per minute. It is power-up and power-down and also incorporates a heavy duty clutch for free-fall. Braking is accoplished with a Hunke automatic fail safe brake. Spool cable capacity is 1,650 ft of 1/4″ cable, 1,050 ft of 5/16″ cable or 740 ft of 3/8″ cable.
