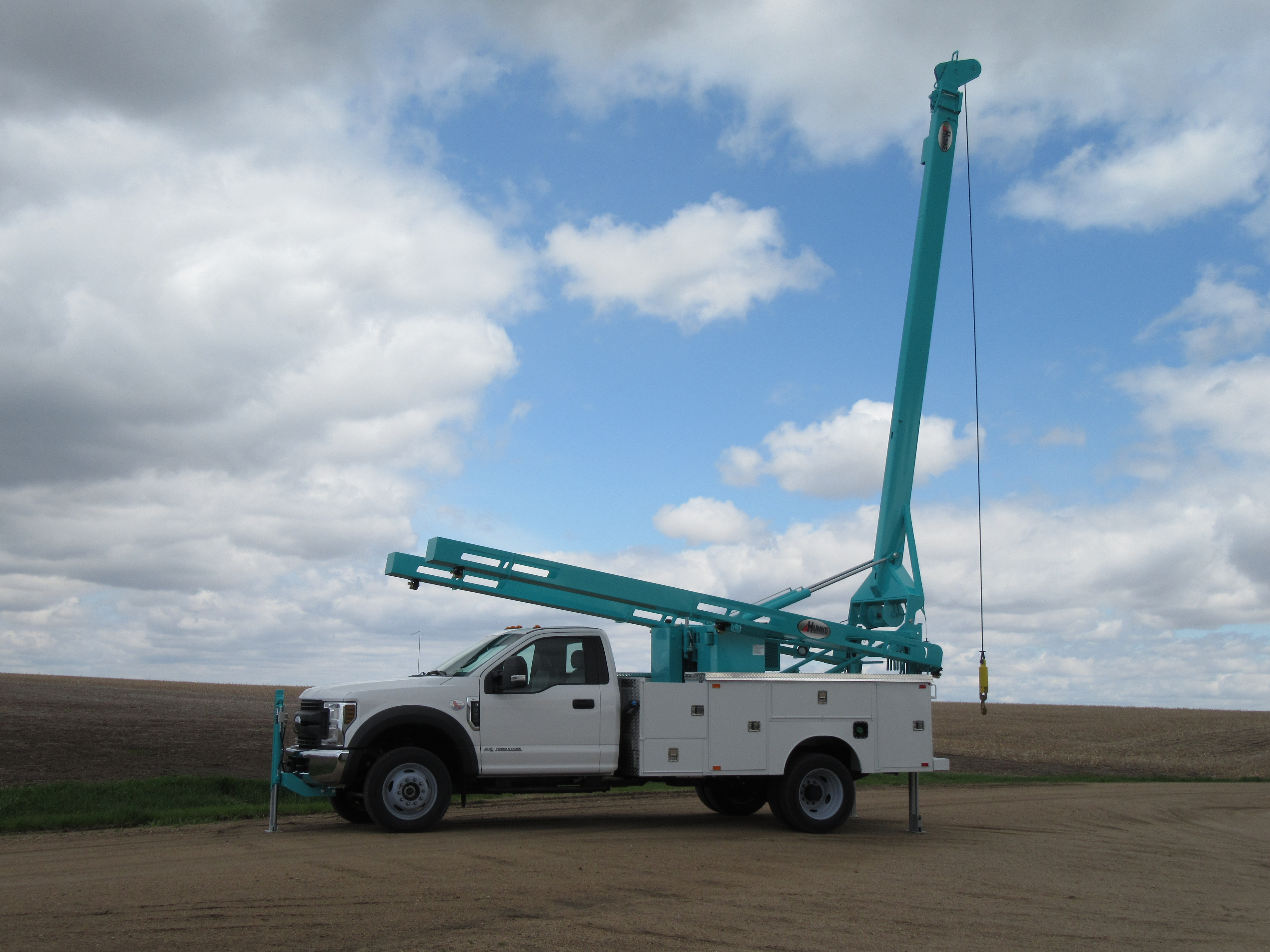

The 12,000 lb. capacity 6T is a very popular pump hoist. Like the 5T, the 6T is extremely versatile with capabilities ranging from small submersible pumps all the way up to line shaft turbines.  Fast and easy setup by means of a self supporting mast with two 3 1/2" bore hydraulic cylinders.  A guy cable is not needed in most situations.  Designed to allow for easy access to hard-to-get-to pumps and windmills.  Weight is approximately 3,000 lbs.

The 6T can be mounted on a 54" x 9' utility body or on a deck.

The open frame design allows full use of deck area for cargo and work tools.

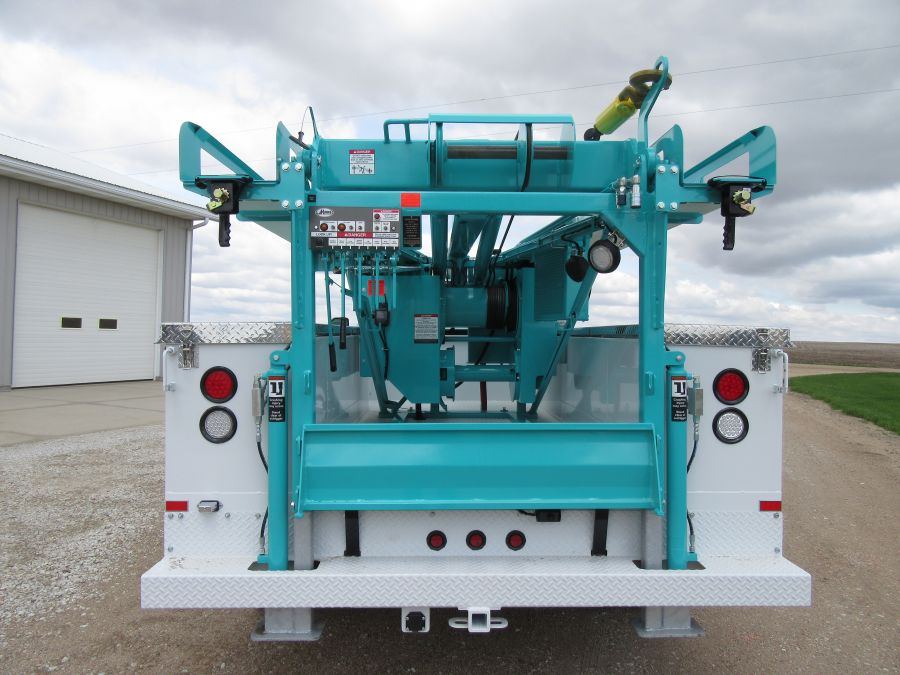

The controls are conveniently located at the left rear corner of the rig and are accessible from ground level.

The optional sandline winch has a 2,300 lb. bare spool lifting capacity with a line speed of 325ft per minute.  It is power-up and power-down and as another option, can incorporate a heavy duty clutch for free-fall.  Braking is accomplished with a Hunke fail-safe brake.  Spool cable capacity is 1,200 ft. of 5/16" cable, 850 ft. of 3/8" cable or 600 ft. of 7/16" cable.
